PTVS1-058C-H | Bourns Electronics GmbH

SMD TVS diode, bidirectional, 67 V, DFN, Bourns Electronics GmbH PTVS1-058C-H

Order No.: 26S2815
EAN: 4099891742201
MPN:
PTVS1-058C-H
Series: PTVS1
PTVS1-058C-H Bourns Electronics GmbH TVS Diodes

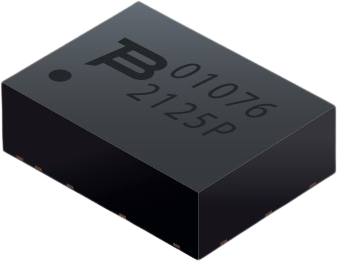

Image may differ
Unit Price (€ / pc.)
4.9147 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
4.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.9147 €

High current TVS diode, PTVS1-058C-H, Bourns Electronics GmbH

The high current TVS diode is designed to protect DC or PoE powered systems such as small cell or surveillance cameras that can be exposed to high surge events such as induced lightning or inductive power switching.

Features

  • Bidirectional TVS
  • Low clamping voltage under surge
  • Excellent performance over temperature

Applications

  • Protection against lightning strikes, inductive and transient surges up to rated limits
  • Exposed PoE ports
  • Small cell, Remote Radio Units (RRUs) and Baseband Units (BBUs)
  • High power DC bus protection
Technical specifications
Version bidirectional
Number of diodes 1
Capacity 0.8 nF
Enclosure DFN
min. operating temperature -55 °C
max. operating temperature 125 °C
Rated blocking voltage 67 V
Breakdown voltage 70 V
Assembly SMD
Logistics
MSL MSL 1
Customs tariff number 85411000
Country of origin PH
Compliance
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
