CDSOD323-T24C | Bourns Electronics GmbH
SMD TVS diode, bidirectional, 350 W, 24 V, SOD-323, Bourns Electronics GmbH CDSOD323-T24C
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: 18 Weeks
Suppressor diode arrays, type Bourns CDSOD323.

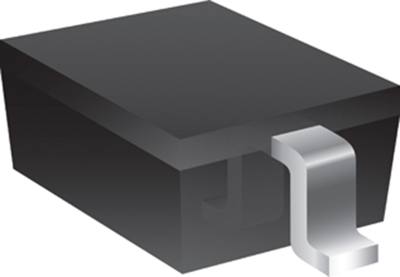

Package: SOD323. Pulse peak losses: 350 W. Operating temperatures: –55 to +150 °C.

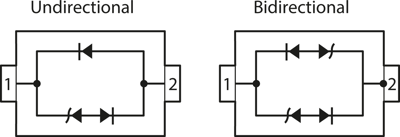

Bidirectional version.
Technical attributes (type, rated voltage, breakdown voltage): CDSOD323–T24C, 24 V, 26.7 V
Technical specifications
| Rated blocking voltage | 24 V | |
| Assembly | SMD | |
| Enclosure | SOD-323 | |
| Pulse power loss | 350 W | |
| Capacity | 3 pF | |
| Version | bidirectional | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Breakdown voltage | 26.7 V |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
