TC42X-2-105E | Bourns Electronics GmbH

Cermet trimmer potentiometer, 1 MΩ, 5.1 W, SMD, on top, TC42X-2-105E

Order No.: 78E6734
EAN: 4099879947338
MPN:
TC42X-2-105E
TC42X-2-105E Bourns Electronics GmbH Trimmer Potentiometers

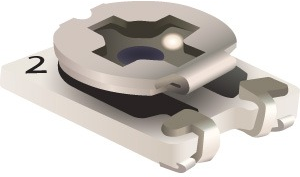

Image may differ
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,927.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.3213 €

Trimming potentiometer, TC42X-2-105E, Bourns Electronics GmbH

This SMD trimming potentiometer is a single-turn cermet/open-frame component with a 2 mm size that complies with the EIA/EIAJ standard trimmer footprint.

Technical specifications
Filter Property Value
Assembly SMD
Power 5.1 W
Connection J-hook
max. operating temperature 100 °C
Seeting on top
Version cermet trimmer potentiometer
Temperature coefficient ±250 ppm/K
max. number of revolutions 1
Width 6.2 mm
ohmic resistance 1 MΩ
Height 4.8 mm
Contact distance RM 1.3
Rotary range, electrical 240 °
min. operating temperature -40 °C
Tolerance ±25 %
Length 6.8 mm
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 3,000 pieces
Customs tariff number 85334010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
