TC33X-2-203G | Bourns Electronics GmbH

Cermet trimmer potentiometer, 20 kΩ, 0.1 W, SMD, on top, TC33X-2-203G

Order No.: 78E6710
EAN: 4099879947154
MPN:
TC33X-2-203G

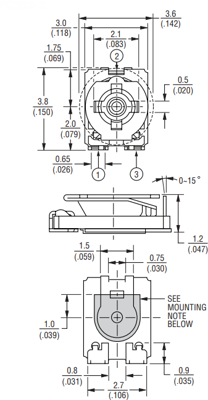

TC33X-2-203G Bourns Electronics GmbH Trimmer Potentiometers Image 1

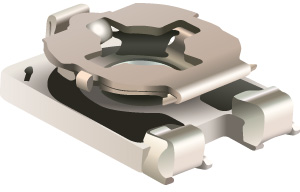

TC33X-2-203G Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
0.1761 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,585.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
9000 pcs.
0.1761 €

Trimming potentiometer, TC33X-2-203G, Bourns Electronics GmbH

SMD trimming potentiometer with a rotor design that is suitable for pick and place and automatic adjustment equipment. It meets the EIA/EIAJ standard trimmer footprint with its 3 mm size.

Technical specifications
Filter Property Value
Temperature coefficient ±250 ppm/K
max. number of revolutions 1
Track Taper linear
Assembly SMD
Width 3 mm
Height 1.2 mm
Power 0.1 W
Length 3.8 mm
Contact distance RM 0.8
Version cermet trimmer potentiometer
min. operating temperature -40 °C
Connection J-hook
Tolerance ±25 %
max. operating temperature 100 °C
Rotary range, electrical 200 °
ohmic resistance 20 kΩ
Seeting on top
Logistics
Property Value
Country of origin CN
Customs tariff number 85334010
Original Packaging Reel with 9,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
