PV36Y504C01B00 | Bourns Electronics GmbH

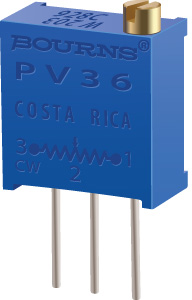

Cermet trimmer potentiometer, 25 turns, 500 kΩ, 0.5 W, THT, on top, PV36Y504C01B00
Order No.: 78E6554
EAN: 4099879945617
MPN:
PV36Y504C01B00
Unit Price (€ / pc.)
2.023 € *
Standard delivery time from the manufacturer is: 14 Weeks
Trimming potentiometer, PV36Y504C01B00, Bourns Electronics GmbH
Multiturn trimming potentiometer is designed with a lead seal, allowing for different adjustments. It can be pre-adjusted in clockwise, counter-clockwise, or the standard 50 % position. The potentiometer also features top adjustment and standoffs that enable thorough PC board washing. Additionally, it incorporates a chevron seal design.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder pin | |
| Track Taper | linear | |
| Width | 4.83 mm | |
| Rotary range, electrical | 9000 ° | |
| Power | 0.5 W | |
| Contact distance | RM 2.54 | |
| Length | 9.53 mm | |
| max. operating temperature | 125 °C | |
| Seeting | on top | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Temperature coefficient | ±100 ppm/K | |
| Version | cermet trimmer potentiometer | |
| Height | 10.03 mm | |
| Tolerance | ±10 % | |
| ohmic resistance | 500 kΩ | |
| max. number of revolutions | 25 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CR |
| Customs tariff number | 85334010 |
| Original Packaging | Bar with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
