PV36X501C01B00 | Bourns Electronics GmbH
Cermet trimmer potentiometer, 25 turns, 5 kΩ, 0.5 W, THT, lateral, PV36X501C01B00
Order No.: 78E6532
EAN: 4099879945396
MPN:
PV36X501C01B00
Unit Price (€ / pc.)
2.023 € *
Standard delivery time from the manufacturer is: 11 Weeks

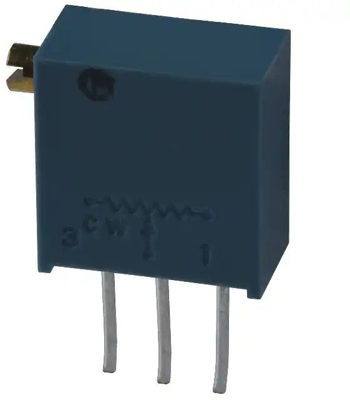

Trimmer potentiometer, PV36X501C01B00, Bourns
Features
- Multiturn / Cermet / Sealed
- Available in both top and side adjustment
- Chevron seal design
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 25 | |
| Track Taper | linear | |
| Assembly | THT | |
| Width | 4.83 mm | |
| Height | 10.03 mm | |
| Power | 0.5 W | |
| Length | 9.53 mm | |
| Contact distance | RM 2.54 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | solder pin | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 9000 ° | |
| ohmic resistance | 5 kΩ | |
| Seeting | lateral |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| Original Packaging | Bar with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
