PV36W102C01B00 | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 1 kΩ, 0.5 W, THT, on top, PV36W102C01B00

Order No.: 78E6500
EAN: 4099879945075
MPN:
PV36W102C01B00
Series: PV36W

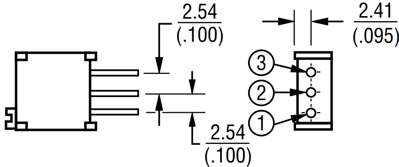

PV36W102C01B00 Bourns Electronics GmbH Trimmer Potentiometers Image 1

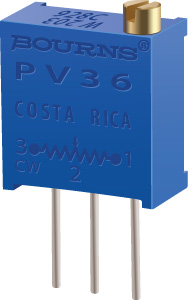

PV36W102C01B00 Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
349.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
1.7493 €

Trimmer Potentiometer, PV36W102C01B00, Bourns Electronics GmbH

Features

  • Multiturn / Cermet / Sealed
  • Chevron seal design
  • For trimmer applications/processing
  • RoHS compliant
Technical specifications
Temperature coefficient ±100 ppm/K
max. number of revolutions 25
Track Taper linear
Assembly THT
Width 4.83 mm
Height 10.03 mm
Power 0.5 W
Length 9.53 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 9000 °
ohmic resistance 1 kΩ
Seeting on top
Logistics
Country of origin CR
Customs tariff number 85334010
MSL MSL 2
Original Packaging Bar with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
