PV32H252A01B00 | Bourns Electronics GmbH
Cermet trimmer potentiometer, 2.5 kΩ, 0.5 W, THT, on top, PV32H252A01B00
Order No.: 78E6399
EAN: 4099879944061
MPN:
PV32H252A01B00
Unit Price (€ / pc.)
1.8207 € *
Standard delivery time from the manufacturer is: 11 Weeks

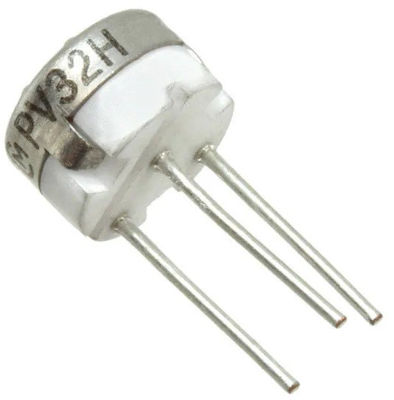

Trimmer potentiometer, PV32H252A01B00, Bourns
Features
- 1/4 ” Round / Single-turn / Cermet / Sealed
- Flammability: UL 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 260 ° | |
| Power | 0.5 W | |
| max. number of revolutions | 1 | |
| Seeting | on top | |
| Contact distance | RM 2.54 | |
| Connection | solder pin | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 240 ° | |
| Tolerance | ±20 % | |
| Height | 4.57 mm | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Track Taper | linear | |
| ohmic resistance | 2.5 kΩ | |
| Version | cermet trimmer potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CR |
| Original Packaging | Bar with 100 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
