3362U-1-503LF | Bourns Electronics GmbH

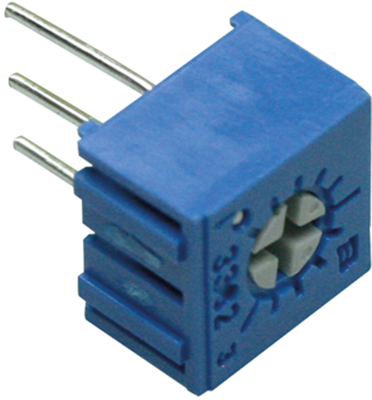

Cermet trimmer potentiometer, 50 kΩ, 0.5 W, THT, on top, 3362U-1-503LF
Order No.: 76E4574
EAN: 4099879896346
MPN:
3362U-1-503LF
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Cermet trimmer potentiometer, 3362U-1-503LF, Bourns
Cermet trimmer potentiometer, 50 kΩ, 0.5 W
Features
- Single-Turn / Cermet / Industrial / Sealed
- Miniature package
- Rotor designed for automatic machine adjust interface
- Withstands harsh environments and immersion cleaning processes

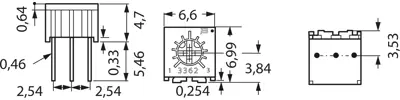

Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | THT | |
| Width | 6.99 mm | |
| Height | 4.88 mm | |
| Power | 0.5 W | |
| Length | 6.6 mm | |
| Contact distance | RM 2.54 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | solder pin | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| ohmic resistance | 50 kΩ | |
| Seeting | on top |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
