3361S-1-504GLF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 500 kΩ, 0.5 W, SMD, lateral, 3361S-1-504GLF
Order No.: 78E4701
EAN: 4099879928856
MPN:
3361S-1-504GLF
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: 14 Weeks

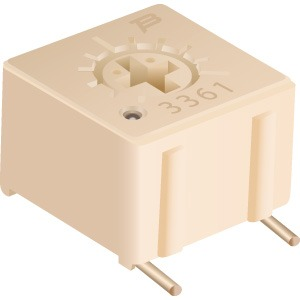

Trimming potentiometer, 3361S-1-504GLF, Bourns Electronics GmbH
This SMD trimming potentiometer has a square shape with a size of 1/4 inch. The rotor of this potentiometer is specifically designed for automatic machine adjustment. It is capable of withstanding harsh environments and immersion cleaning processes. This potentiometer comes in a miniature package and is compatible with surface mount manufacturing processes. Additionally, it is RoHS compliant, ensuring it meets environmental standards.

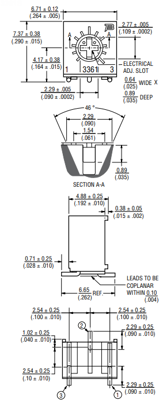

Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 500 kΩ | |
| Width | 7.37 mm | |
| Connection | solder pin | |
| Mechanic rotary range | 270 ° | |
| Rotary range, electrical | 240 ° | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 125 °C | |
| Power | 0.5 W | |
| min. operating temperature | -55 °C | |
| Version | cermet trimmer potentiometer | |
| Assembly | SMD | |
| Contact distance | RM 2.54 | |
| Seeting | lateral | |
| Height | 4.88 mm | |
| max. number of revolutions | 1 | |
| Length | 6.71 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Country of origin | CR |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
