3361S-1-103GLF | Bourns Electronics GmbH

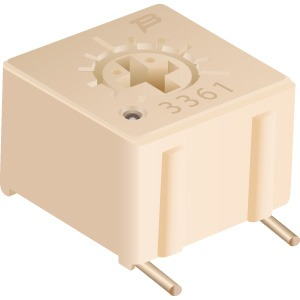

Cermet trimmer potentiometer, 10 kΩ, 0.5 W, SMD, lateral, 3361S-1-103GLF
Unit Price (€ / pc.)
0.9401 € *
Standard delivery time from the manufacturer is: 14 Weeks
Trimming Potentiometer, 3361S-1-103GLF, Bourns Electronics GmbH
Features
- Single-Turn / Cermet / Industrial / Sealed
- Rotor designed for automatic machine adjust interface
- Withstands harsh environments and immersion cleaning processes
- For trimmer applications/processing
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 10 kΩ | |
| max. operating temperature | 125 °C | |
| Seeting | lateral | |
| Length | 6.71 mm | |
| min. operating temperature | -55 °C | |
| Height | 4.88 mm | |
| Assembly | SMD | |
| Contact distance | RM 2.54 | |
| Width | 7.37 mm | |
| Rotary range, electrical | 240 ° | |
| Power | 0.5 W | |
| Connection | gull-wing | |
| Temperature coefficient | ±100 ppm/K | |
| Mechanic rotary range | 270 ° | |
| Version | cermet trimmer potentiometer | |
| Tolerance | ±10 % | |
| max. number of revolutions | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Reel with 500 pieces |
| Country of origin | CR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
