3361P-1-200GLF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 20 Ω, 0.5 W, SMD, on top, 3361P-1-200GLF

Order No.: 78E4641
EAN: 4099879928252
MPN:
3361P-1-200GLF

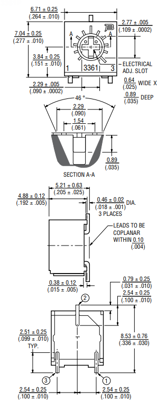

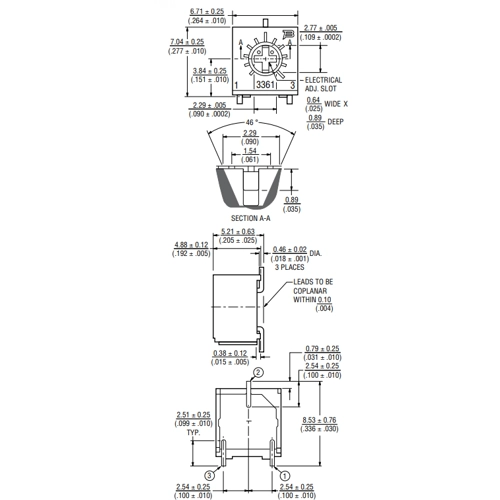

3361P-1-200GLF Bourns Electronics GmbH Trimmer Potentiometers Image 1

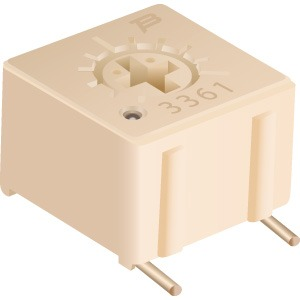

3361P-1-200GLF Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
678.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
750 pcs.
0.9044 €

Trimming potentiometer, 3361P-1-200GLF, Bourns Electronics GmbH

This SMD trimming potentiometer has a square shape with a size of 1/4 inch. The rotor of this potentiometer is specifically designed for automatic machine adjustment. It is capable of withstanding harsh environments and immersion cleaning processes. This potentiometer comes in a miniature package and is compatible with surface mount manufacturing processes. Additionally, it is RoHS compliant, ensuring it meets environmental standards.

Technical specifications
Filter Property Value
Version cermet trimmer potentiometer
ohmic resistance 20 Ω
Tolerance ±10 %
Power 0.5 W
Assembly SMD
Track Taper linear
Temperature coefficient ±100 ppm/K
Rotary range, electrical 240 °
Mechanic rotary range 270 °
max. number of revolutions 1
Seeting on top
Connection gull-wing
Contact distance RM 5.08
Length 6.71 mm
Width 7.04 mm
Height 5.21 mm
min. operating temperature -55 °C
max. operating temperature 125 °C
Logistics
Property Value
Country of origin CR
Customs tariff number 85334010
Original Packaging Reel with 750 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
