3352E-1-200LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 20 Ω, 0.5 W, THT, on top, 3352E-1-200LF
Order No.: 78E4351
EAN: 4099879925350
MPN:
3352E-1-200LF
Unit Price (€ / pc.)
2.261 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

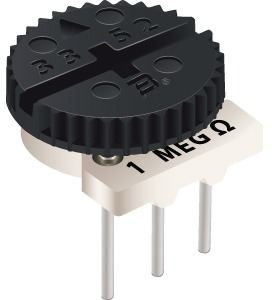

Trimmer potentiometer, 3352E-1-200LF, Bourns
Trimmer potentiometer, 20 Ω, 0.5 W
Features
- Single-Turn / Cermet / Industrial / Open Frame
- Stable cermet element offers infinite resolution
- Very low profile
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 1 | |
| Assembly | THT | |
| Width | 7.62 mm | |
| Mechanic rotary range | 250 ° | |
| Height | 3.81 mm | |
| Power | 0.5 W | |
| Length | 9.53 mm | |
| Contact distance | RM 2.54 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | solder pin | |
| Tolerance | ±20 % | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 205 ° | |
| ohmic resistance | 20 Ω | |
| Seeting | on top |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
