3329P-DK9-102LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 1 kΩ, 0.5 W, THT, on top, 3329P-DK9-102LF

Order No.: 78E4012
EAN: 4099879922519
MPN:
3329P-DK9-102LF

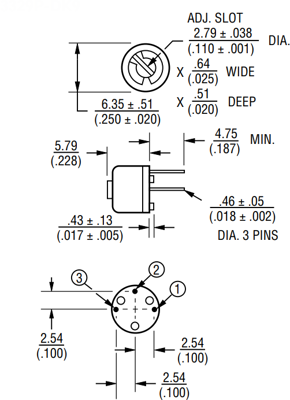

3329P-DK9-102LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

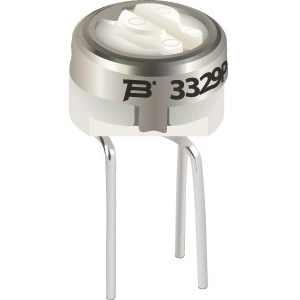

3329P-DK9-102LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.0111 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,005.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
2.0111 €

Trimmer potentiometer, 3329P-DK9-102LF, Bourns

Trimmer potentiometer, 1 kΩ, 0.5 W

Features

  • 1/4” Round / Single-Turn / Cermet Industrial / Sealed
  • Tape and reel packaging available
Technical specifications
Filter Property Value
Connection solder pin
Rotary range, electrical 240 °
Mechanic rotary range 260 °
Power 0.5 W
Contact distance RM 2.54
max. operating temperature 150 °C
Seeting on top
Assembly THT
min. operating temperature -55 °C
Temperature coefficient ±100 ppm/K
Version cermet trimmer potentiometer
Height 5.82 mm
Tolerance ±10 %
ohmic resistance 1 kΩ
max. number of revolutions 1
Logistics
Property Value
Country of origin MX
Customs tariff number 85334010
MSL MSL 2
Original Packaging Bar with 50 pieces
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
