3314R-1-472E | Bourns Electronics GmbH

Cermet trimmer potentiometer, 4.7 kΩ, 0.25 W, SMD, on top, 3314R-1-472E

Order No.: 78E3732
EAN: 4099879920690
MPN:
3314R-1-472E

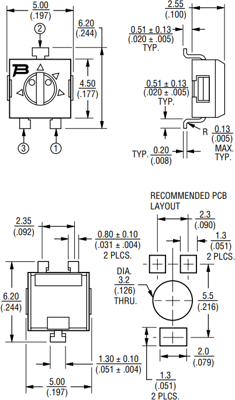

3314R-1-472E Bourns Electronics GmbH Trimmer Potentiometers Image 1

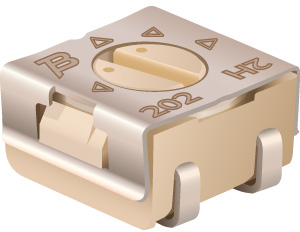

3314R-1-472E Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.4042 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
2,808.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.4042 €

Trimmer potentiometer, 3314R-1-472E, Bourns

Trimmer potentiometer, 4.7 kΩ, 0.25 W

Features

  • Surface Mount / Single Turn / Cermet Industrial / Sealed
  • Compatible with surface mount manufacturing processes
  • Compatible with popular vacuum pick-and-place equipmen
  • Side adjust available
Technical specifications
Filter Property Value
Temperature coefficient ±100 ppm/K
max. number of revolutions 1
Assembly SMD
Width 4.5 mm
Mechanic rotary range 240 °
Height 2.55 mm
Power 0.25 W
Length 5 mm
Contact distance RM 2.35
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection gull-wing
Tolerance ±20 %
max. operating temperature 125 °C
Rotary range, electrical 210 °
ohmic resistance 4.7 kΩ
Seeting on top
Logistics
Property Value
Country of origin TW
Customs tariff number 85334010
Original Packaging Reel with 500 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
