3314H-1-204 | Bourns Electronics GmbH

Cermet trimmer potentiometer, 200 kΩ, 0.25 W, SMD, on top, 3314H-1-204

Order No.: 78E3672
EAN: 4099879920102
MPN:
3314H-1-204

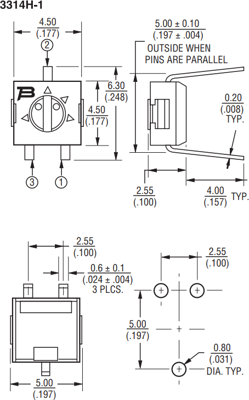

3314H-1-204 Bourns Electronics GmbH Trimmer Potentiometers Image 1

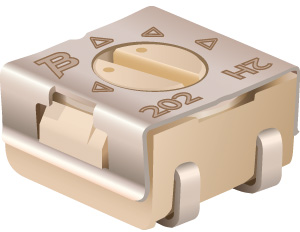

3314H-1-204 Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.6184 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
323.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
1.6184 €

Trimmer potentiometer, 3314H-1-204, Bourns

Trimmer potentiometer, 200 kΩ, 0.25 W

Features

  • Surface Mount / Single Turn / Cermet Industrial / Sealed
  • Compatible with surface mount manufacturing processes
  • Compatible with popular vacuum pick-and-place equipmen
  • Side adjust available
Technical specifications
Filter Property Value
Temperature coefficient ±100 ppm/K
max. number of revolutions 1
Assembly SMD
Width 4.5 mm
Mechanic rotary range 240 °
Height 2.55 mm
Power 0.25 W
Length 4.5 mm
Contact distance RM 2.55
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±20 %
max. operating temperature 125 °C
Rotary range, electrical 210 °
ohmic resistance 200 kΩ
Seeting on top
Logistics
Property Value
Country of origin TW
Customs tariff number 85334010
Original Packaging Reel with 200 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
