3306W-1-502 | Bourns Electronics GmbH
Cermet trimmer potentiometer, 5 kΩ, 0.2 W, THT, lateral, 3306W-1-502
Order No.: 76E3460
EAN: 4099879895042
MPN:
3306W-1-502
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 20 Weeks
Trimmer potentiometer, 3306W-1-502, Bourns Electronics GmbH
Trimming potentiometer with a protective cover to resist dust and splashes. 6 mm round. Includes a PC board stand-off and retention feature for added convenience.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 5 kΩ | |
| Width | 6.81 mm | |
| Connection | solder pin | |
| Mechanic rotary range | 260 ° | |
| Rotary range, electrical | 215 ° | |
| Tolerance | ±25 % | |
| Temperature coefficient | ±250 ppm/K | |
| max. operating temperature | 100 °C | |
| Power | 0.2 W | |
| min. operating temperature | -25 °C | |
| Version | cermet trimmer potentiometer | |
| Assembly | THT | |

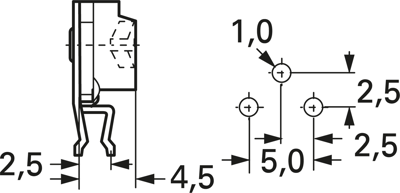

| Contact distance | RM 2.5 | |
| Seeting | lateral | |
| Height | 4.5 mm | |
| max. number of revolutions | 1 | |
| Length | 8.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 2,000 pieces |
| MSL | MSL 2 |
| Country of origin | JP |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
