3299W-1-251LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 250 Ω, 0.5 W, THT, on top, 3299W-1-251LF

Order No.: 78E3313
EAN: 4099879917553
MPN:
3299W-1-251LF

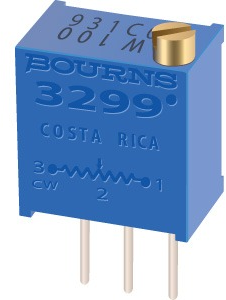

3299W-1-251LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

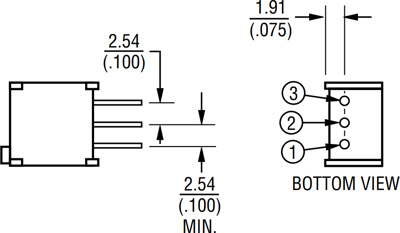

3299W-1-251LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.0111 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
4,022.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
2.0111 €
Technical specifications
Temperature coefficient ±100 ppm/K
max. number of revolutions 25
Track Taper linear
Assembly THT
Width 9.53 mm
Height 6.1 mm
Power 0.5 W
Length 10.03 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 9000 °
ohmic resistance 250 Ω
Seeting on top
Logistics
Country of origin CR
Customs tariff number 85334010
Original Packaging Bar with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
