3296Y-1-473LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 47 kΩ, 0.5 W, THT, on top, 3296Y-1-473LF

Order No.: 76E2761
EAN: 4099879894236
MPN:
3296Y-1-473LF

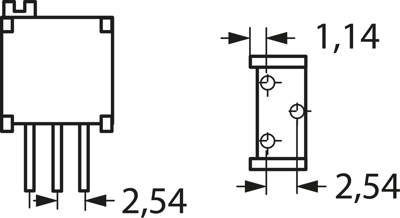

3296Y-1-473LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

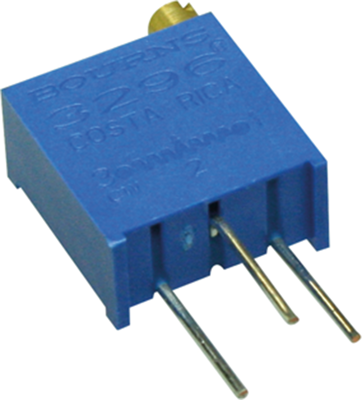

3296Y-1-473LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
3296Y-1-473LF Bourns Electronics GmbH Trimmer Potentiometers Image 3
Image may differ
Unit Price (€ / pc.)
1.5827 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
3,165.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.5827 €

Trimmer potentiometer, 3296Y-1-473LF, Bourns Electronics GmbH

Trimming potentiometer with a chevron seal design, 3/8 inches square.

Technical specifications
Filter Property Value
Temperature coefficient ±100 ppm/K
max. number of revolutions 25
Track Taper linear
Assembly THT
Width 4.83 mm
Height 10.03 mm
Power 0.5 W
Length 9.53 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 9000 °
ohmic resistance 47 kΩ
Seeting on top
Logistics
Property Value
Country of origin CR
Customs tariff number 85334010
Original Packaging Bar with 50 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
