3296Y-1-222LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 25 turns, 2.2 kΩ, 0.5 W, THT, on top, 3296Y-1-222LF
Unit Price (€ / pc.)
2.5704 € *
Available: 1,994 pcs.
Total Price:
2.57 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5704 €
10 pcs.
2.0587 €
100 pcs.
1.6422 €
500 pcs.
1.4161 €
1000 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale

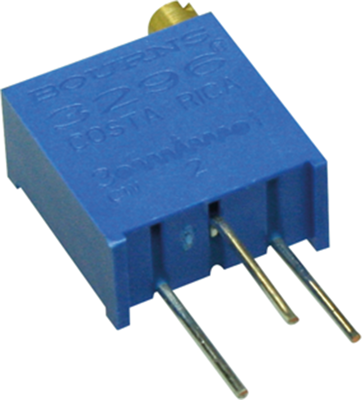

Trimmer potentiometer, 3296Y-1-222LF, Bourns Electronics GmbH
Trimming potentiometer with a chevron seal design, 3/8 inches square.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 10.03 mm | |
| Rotary range, electrical | 9000 ° | |
| ohmic resistance | 2.2 kΩ | |
| Track Taper | linear | |
| min. operating temperature | -55 °C | |
| Seeting | on top | |
| Tolerance | ±10 % | |
| Length | 9.53 mm | |
| Width | 4.83 mm | |
| Temperature coefficient | ±100 ppm/K | |
| Connection | solder pin | |
| Assembly | THT | |
| Version | cermet trimmer potentiometer | |
| Power | 0.5 W | |
| max. operating temperature | 125 °C | |
| max. number of revolutions | 25 | |

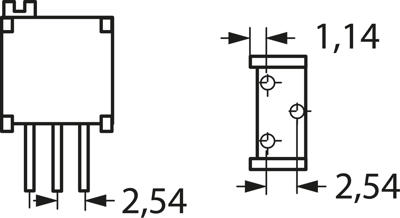

| Contact distance | RM 2.54 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85334010 |
| Country of origin | CR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
