3296Y-1-104LF | Bourns Electronics GmbH

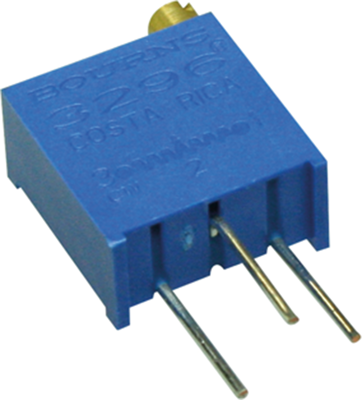

Cermet trimmer potentiometer, 25 turns, 100 kΩ, 0.5 W, THT, on top, 3296Y-1-104LF
Unit Price (€ / pc.)
2.7370 € *
Next delivery: 268 pcs. on 2025-06-20
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
50 pcs.
2.3324 €
100 pcs.
2.2491 €
200 pcs.
2.1539 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale
Trimmer potentiometer, 3296Y-1-104LF, Bourns Electronics GmbH
Trimming potentiometer with a chevron seal design, 3/8 inches square.
Technical specifications
| Height | 10.03 mm | |
| Power | 0.5 W | |
| Tolerance | ±10 % | |
| Length | 9.53 mm | |
| Width | 4.83 mm | |
| Track Taper | linear | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 125 °C | |
| Connection | solder pin | |
| min. operating temperature | -55 °C | |
| Version | cermet trimmer potentiometer | |
| max. number of revolutions | 25 | |
| Seeting | on top | |
| ohmic resistance | 100 kΩ | |
| Rotary range, electrical | 9000 ° | |

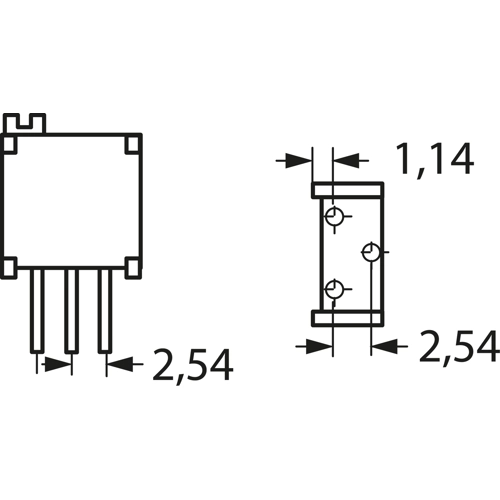

| Contact distance | RM 2.54 | |
| Assembly | THT |
Download
Logistics
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 2 |
| Customs tariff number | 85334010 |
| Country of origin | CR |
Compliance
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
