3296Y-1-100LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 10 Ω, 0.5 W, THT, on top, 3296Y-1-100LF

Order No.: 76E2750
EAN: 4099879894120
MPN:
3296Y-1-100LF
Series: 3296Y

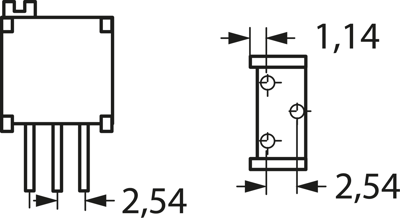

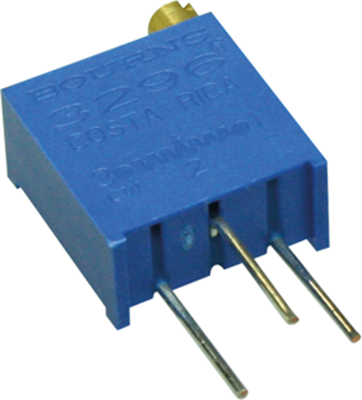

3296Y-1-100LF Bourns Electronics GmbH Trimmer Potentiometers Image 1
3296Y-1-100LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
3296Y-1-100LF Bourns Electronics GmbH Trimmer Potentiometers Image 3
Image may differ
Unit Price (€ / pc.)
3.4867 € *
Available: 94 pcs.
Total Price:
3.49 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4867 €
10 pcs.
2.4871 €
100 pcs.
2.1182 €
500 pcs.
1.8445 €
1000 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale

Trimmer potentiometer, 3296Y-1-100LF, Bourns Electronics GmbH

Trimming potentiometer with a chevron seal design, 3/8 inches square.

Technical specifications
Temperature coefficient ±100 ppm/K
max. number of revolutions 25
Track Taper linear
Assembly THT
Width 4.83 mm
Height 10.03 mm
Power 0.5 W
Length 9.53 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 9000 °
ohmic resistance 10 Ω
Seeting on top
Logistics
Country of origin CR
Customs tariff number 85334010
MSL MSL 2
Original Packaging Bar with 50 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
