3296X-1-471LF | Bourns Electronics GmbH

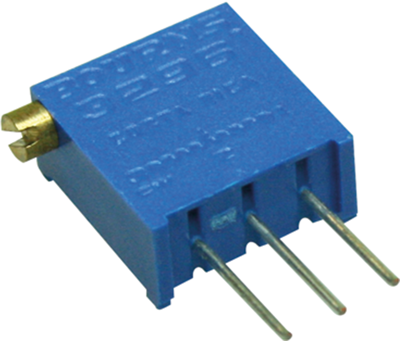

Cermet trimmer potentiometer, 25 turns, 470 Ω, 0.5 W, THT, lateral, 3296X-1-471LF
Order No.: 76E2709
EAN: 4099879893925
MPN:
3296X-1-471LF
Unit Price (€ / pc.)
1.5827 € *
Standard delivery time from the manufacturer is: 14 Weeks
Trimmer potentiometer, 3296X-1-471LF, Bourns Electronics GmbH
Trimming potentiometer with a chevron seal design, 3/8 inches square. Can be adjusted from the side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 470 Ω | |
| max. operating temperature | 125 °C | |
| Seeting | lateral | |
| Length | 9.53 mm | |
| min. operating temperature | -55 °C | |
| Height | 10.03 mm | |
| Assembly | THT | |

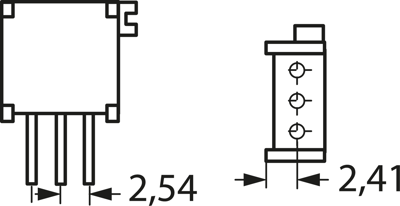

| Contact distance | RM 2.54 | |
| Width | 4.83 mm | |
| Track Taper | linear | |
| Rotary range, electrical | 9000 ° | |
| Power | 0.5 W | |
| Connection | solder pin | |
| Temperature coefficient | ±100 ppm/K | |
| Version | cermet trimmer potentiometer | |
| Tolerance | ±10 % | |
| max. number of revolutions | 25 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Original Packaging | Bar with 50 pieces |
| Country of origin | CR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
