3296X-1-202LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 25 turns, 2 kΩ, 0.5 W, THT, lateral, 3296X-1-202LF
Unit Price (€ / pc.)
1.8326 € *
Available: 3 pcs.
Next delivery: 200 pcs. on 2026-01-05
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.5946 €
100 pcs.
1.2257 €
500 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale

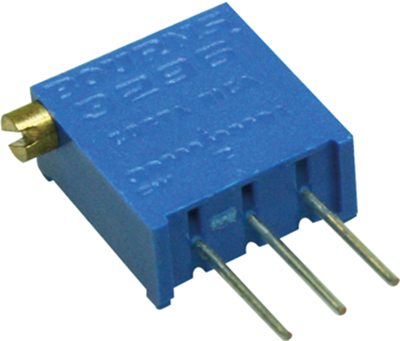

Trimmer potentiometer, 3296X-1-202LF, Bourns Electronics GmbH
Trimming potentiometer with a chevron seal design, 3/8 inches square. Can be adjusted from the side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 2 kΩ | |
| Width | 4.83 mm | |
| Connection | solder pin | |
| Rotary range, electrical | 9000 ° | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 125 °C | |
| Power | 0.5 W | |
| min. operating temperature | -55 °C | |
| Version | cermet trimmer potentiometer | |
| Assembly | THT | |

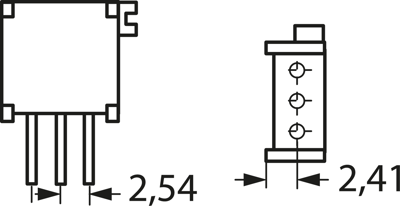

| Contact distance | RM 2.54 | |
| Track Taper | linear | |
| Seeting | lateral | |
| Height | 10.03 mm | |
| max. number of revolutions | 25 | |
| Length | 9.53 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 2 |
| Country of origin | CR |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
