3296W-1-502LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 5 kΩ, 0.5 W, THT, on top, 3296W-1-502LF

Order No.: 76E2666
EAN: 4099879893703
MPN:
3296W-1-502LF
Series: 3296W

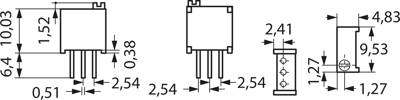

3296W-1-502LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

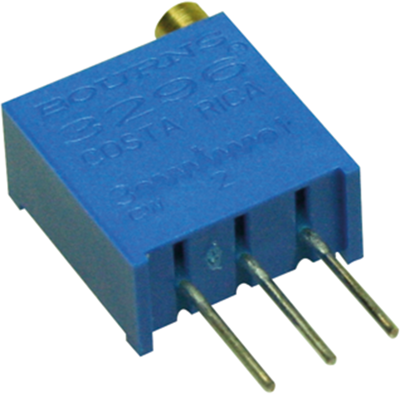

3296W-1-502LF Bourns Electronics GmbH Trimmer Potentiometers Image 2

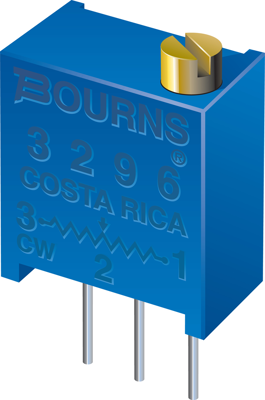

3296W-1-502LF Bourns Electronics GmbH Trimmer Potentiometers Image 3
Image may differ
Unit Price (€ / pc.)
2.7370 € *
Next delivery: 102 pcs. on 2025-10-07
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
50 pcs.
2.3324 €
100 pcs.
2.2491 €
200 pcs.
2.1539 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale

Trimmer potentiometer, 3296W-1-502LF, Bourns Electronics GmbH

Trimming potentiometer with a chevron seal design, 3/8 inches square. Can be adjusted from the top.

Technical specifications
Filter Property Value
max. operating temperature 125 °C
max. number of revolutions 25
ohmic resistance 5 kΩ
Connection solder pin
Length 9.53 mm
Assembly THT
min. operating temperature -55 °C
Temperature coefficient ±100 ppm/K
Power 0.5 W
Seeting on top
Rotary range, electrical 9000 °
Tolerance ±10 %
Version cermet trimmer potentiometer
Height 10.03 mm
Contact distance RM 2.54
Width 4.83 mm
Logistics
Property Value
MSL MSL 2
Original Packaging Bar with 50 pieces
Country of origin CR
Customs tariff number 85334010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
