3296W-1-473LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 47 kΩ, 0.5 W, THT, on top, 3296W-1-473LF

Order No.: 76E2673
EAN: 4099879893772
MPN:
3296W-1-473LF
Series: 3296W

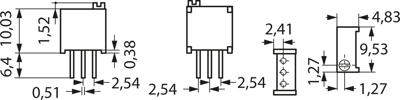

3296W-1-473LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

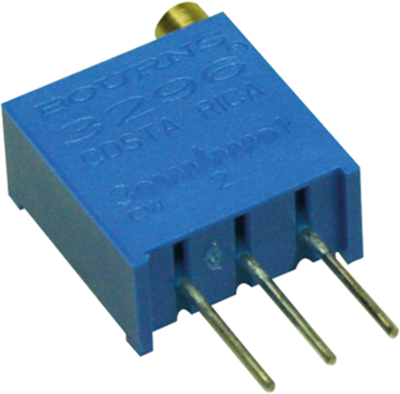

3296W-1-473LF Bourns Electronics GmbH Trimmer Potentiometers Image 2

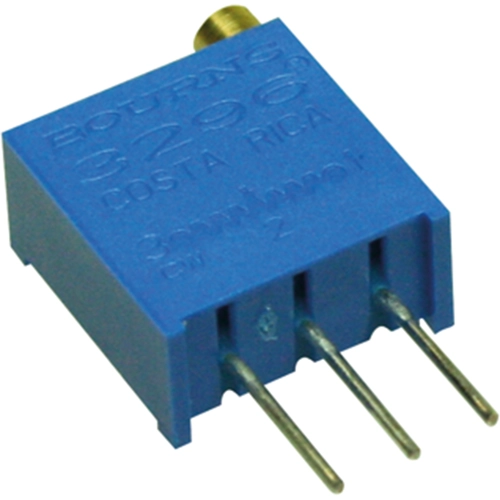

3296W-1-473LF Bourns Electronics GmbH Trimmer Potentiometers Image 3
Image may differ
Unit Price (€ / pc.)
1.4994 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2,998.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.4994 €

Trimmer potentiometer, 3296W-1-473LF, Bourns Electronics GmbH

Trimming potentiometer with a chevron seal design, 3/8 inches square. Can be adjusted from the top.

Technical specifications
Filter Property Value
Connection solder pin
Width 4.83 mm
Rotary range, electrical 9000 °
Power 0.5 W
Contact distance RM 2.54
Length 9.53 mm
max. operating temperature 125 °C
Seeting on top
Assembly THT
min. operating temperature -55 °C
Temperature coefficient ±100 ppm/K
Version cermet trimmer potentiometer
Height 10.03 mm
Tolerance ±10 %
ohmic resistance 47 kΩ
max. number of revolutions 25
Logistics
Property Value
Country of origin CR
Customs tariff number 85334010
Original Packaging Bar with 100 pieces
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
