3296W-1-224 | Bourns Electronics GmbH

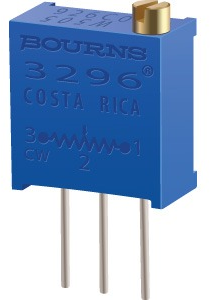

Cermet trimmer potentiometer, 25 turns, 220 kΩ, 0.5 W, THT, on top, 3296W-1-224
Order No.: 78E3094
EAN: 4099879915467
MPN:
3296W-1-224
Unit Price (€ / pc.)
2.6180 € *
Standard delivery time from the manufacturer is: 14 Weeks
Trimming potentiometer, 3296W-1-224, Bourns Electronics GmbH
3/8 inch square trimming potentiometer with chevron seal design.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rotary range, electrical | 9000 ° | |
| Length | 9.53 mm | |
| max. operating temperature | 125 °C | |
| Height | 10.03 mm | |
| Version | cermet trimmer potentiometer | |
| max. number of revolutions | 25 | |
| Connection | solder pin | |
| Contact distance | RM 2.54 | |
| Assembly | THT | |
| ohmic resistance | 220 kΩ | |
| Power | 0.5 W | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| min. operating temperature | -55 °C | |
| Width | 4.83 mm | |
| Seeting | on top |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 100 pieces |
| Country of origin | CR |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | No |
