3296W-1-203RLF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 20 kΩ, 0.5 W, THT, on top, 3296W-1-203RLF

Order No.: 78E3076
EAN: 4099879915290
MPN:
3296W-1-203RLF
3296W-1-203RLF Bourns Electronics GmbH Trimmer Potentiometers

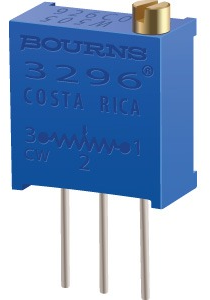

Image may differ
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2,439.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
2.4395 €

Trimming potentiometer, 3296W-1-203RLF, Bourns Electronics GmbH

3/8 inch square trimming potentiometer with chevron seal design. RoHS compliant.

Technical specifications
Filter Property Value
Temperature coefficient ±100 ppm/K
max. number of revolutions 25
Assembly THT
Width 4.83 mm
Height 10.03 mm
Power 0.5 W
Length 9.53 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 9000 °
ohmic resistance 20 kΩ
Seeting on top
Logistics
Property Value
Country of origin US
Customs tariff number 85334010
Original Packaging Bar with 1,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
