3296W-1-104LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 25 turns, 100 kΩ, 0.5 W, THT, on top, 3296W-1-104LF

Order No.: 76E2676
EAN: 4099879893802
MPN:
3296W-1-104LF
Series: 3296W

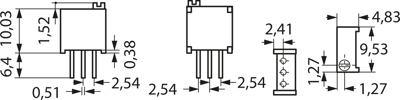

3296W-1-104LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

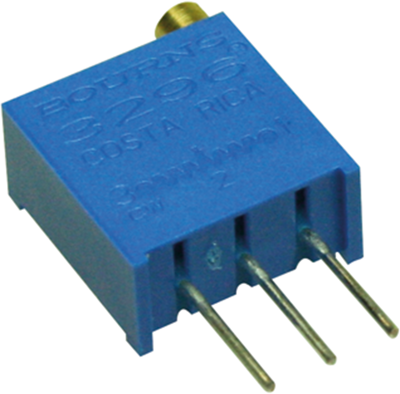

3296W-1-104LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
3296W-1-104LF Bourns Electronics GmbH Trimmer Potentiometers Image 3
Image may differ
Unit Price (€ / pc.)
2.7370 € *
Available: 230 pcs.
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
50 pcs.
2.3324 €
100 pcs.
2.2491 €
200 pcs.
2.1539 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale

Trimmer potentiometer, 3296W-1-104LF, Bourns Electronics GmbH

Trimming potentiometer with a chevron seal design, 3/8 inches square. Can be adjusted from the top.

Technical specifications
Filter Property Value
Width 4.83 mm
max. operating temperature 125 °C
max. number of revolutions 25
Power 0.5 W
Assembly THT
Height 10.03 mm
Tolerance ±10 %
Temperature coefficient ±100 ppm/K
Seeting on top
min. operating temperature -55 °C
Rotary range, electrical 9000 °
Connection solder pin
Contact distance RM 2.54
Length 9.53 mm
ohmic resistance 100 kΩ
Version cermet trimmer potentiometer
Logistics
Property Value
Original Packaging Bar with 50 pieces
Country of origin CR
MSL MSL 2
Customs tariff number 85334010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
