3296P-1-470LF | Bourns Electronics GmbH

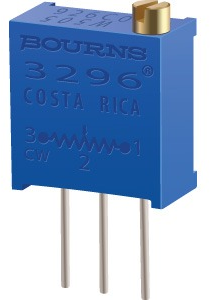

Cermet trimmer potentiometer, 25 turns, 47 Ω, 0.25 W, THT, lateral, 3296P-1-470LF
Order No.: 78E3022
EAN: 4099879914767
MPN:
3296P-1-470LF
Unit Price (€ / pc.)
1.5827 € *
Standard delivery time from the manufacturer is: 13 Weeks
Trimming potentiometer, 3296P-1-470LF, Bourns Electronics GmbH
3/8 inch square trimming potentiometer with chevron seal design. RoHS compliant.
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 25 | |
| Track Taper | linear | |
| Assembly | THT | |
| Width | 4.83 mm | |
| Height | 10.03 mm | |
| Power | 0.25 W | |
| Length | 9.53 mm | |
| Contact distance | RM 2.54 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | solder pin | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 9000 ° | |
| ohmic resistance | 47 Ω | |
| Seeting | lateral |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| Original Packaging | Bar with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
