3292L-1-504MLF | Bourns Electronics GmbH

Name: Cermet trimmer potentiometer, 25 turns, 500 kΩ, 0.5 W, PCB mounting, lateral, 3292L-1-504MLF
Brand: Bourns Electronics GmbH
SKU: 78E2828
Availability: InStock

Cermet trimmer potentiometer, 25 turns, 500 kΩ, 0.5 W, PCB mounting, lateral, 3292L-1-504MLF

Order No.: 78E2828

EAN: 4099879913197

MPN:

3292L-1-504MLF

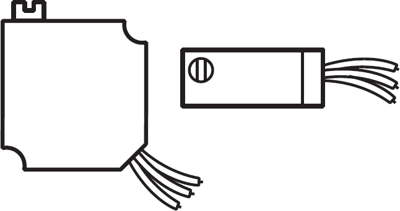

Image may differ

Key Specification:

Version cermet trimmer potentiometer

ohmic resistance 500 kΩ

Tolerance ±10 %

Power 0.5 W

Assembly PCB mounting

Download Datasheet Technical specifications

Unit Price (€ / pc.)

26.5965 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

2,659.65 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Trimmer potentiometer, 3292L-1-504MLF, Bourns

Trimmer potentiometer, 500 kΩ, 0.5 W

Features

Multiturn / Cermet / Industrial / Sealed
Thin body profile

Technical specifications

Filter	Property	Value
	Temperature coefficient	±100 ppm/K
	max. number of revolutions	25
	Connection	cable
	Tolerance	±10 %
	Seeting	lateral
	Track Taper	linear
	ohmic resistance	500 kΩ
	Power	0.5 W

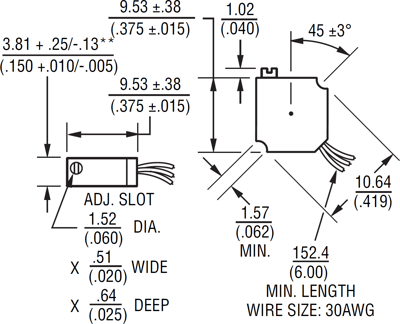

	Width	9.53 mm
	Height	3.81 mm
	Assembly	PCB mounting
	max. operating temperature	150 °C
	min. operating temperature	-65 °C
	Version	cermet trimmer potentiometer
	Rotary range, electrical	9000 °
	Length	9.53 mm
