3290W-1-200 | Bourns Electronics GmbH

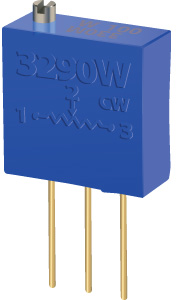

Trimmer potentiometer, 25 turns, 20 Ω, 1 W, THT, on top, 3290W-1-200
Order No.: 78E2747
EAN: 4099879912510
MPN:
3290W-1-200
Unit Price (€ / pc.)
31.5469 € *
Standard delivery time from the manufacturer is: 10 Weeks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±50 ppm/K | |
| max. number of revolutions | 25 | |
| Contact distance | RM 2.54 | |
| Connection | solder pin | |
| Tolerance | ±5 % | |
| Seeting | on top | |
| Track Taper | linear | |
| ohmic resistance | 20 Ω | |
| Power | 1 W | |
| Width | 3.81 mm | |
| Height | 9.53 mm | |
| Assembly | THT | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Version | trimmer potentiometer | |
| Rotary range, electrical | 9000 ° | |
| Length | 9.53 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | MX |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
