3290W-1-102 | Bourns Electronics GmbH

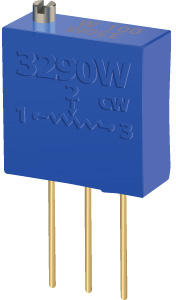

Trimmer potentiometer, 25 turns, 1 kΩ, 1 W, THT, on top, 3290W-1-102
Order No.: 78E2743
EAN: 4099879912473
MPN:
3290W-1-102
Unit Price (€ / pc.)
31.5469 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Technical specifications
| Temperature coefficient | ±50 ppm/K | |
| max. number of revolutions | 25 | |
| Track Taper | linear | |
| Assembly | THT | |
| Width | 3.81 mm | |
| Height | 9.53 mm | |
| Power | 1 W | |
| Length | 9.53 mm | |
| Contact distance | RM 2.54 | |
| Version | trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | solder pin | |
| Tolerance | ±5 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 9000 ° | |
| ohmic resistance | 1 kΩ | |
| Seeting | on top |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
