3269X-1-502LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 5 kΩ, 0.25 W, SMD, lateral, 3269X-1-502LF
Order No.: 78E2707
EAN: 4099879912114
MPN:
3269X-1-502LF
Unit Price (€ / pc.)
3.2368 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Trimming potentiometer, 3269X-1-502LF, Bourns Electronics GmbH
SMD trimming potentiometer. Square shape with a size of 1/4 inches. It features a stable and infinite resolution cermet element, making it highly precise. Additionally, it is compatible with surface mount manufacturing processes, ensuring easy integration into electronic devices. RoHS compliant, meeting the necessary environmental standards.

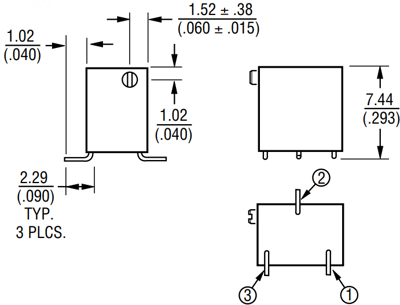

Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 12 | |
| Assembly | SMD | |
| Width | 4.32 mm | |
| Height | 7.44 mm | |
| Power | 0.25 W | |
| Length | 6.35 mm | |
| Contact distance | RM 5.08 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | gull-wing | |
| Tolerance | ±10 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 4320 ° | |
| ohmic resistance | 5 kΩ | |
| Seeting | lateral |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
