3269X-1-102LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 1 kΩ, 0.25 W, SMD, lateral, 3269X-1-102LF
Order No.: 78E2658
EAN: 4099879911629
MPN:
3269X-1-102LF
Unit Price (€ / pc.)
3.2368 € *
Standard delivery time from the manufacturer is: 12 Weeks
Trimming potentiometer, 3269X-1-102LF, Bourns Electronics GmbH
SMD trimming potentiometer. Square shape with a size of 1/4 inches. It features a stable and infinite resolution cermet element, making it highly precise. Additionally, it is compatible with surface mount manufacturing processes, ensuring easy integration into electronic devices. RoHS compliant, meeting the necessary environmental standards.

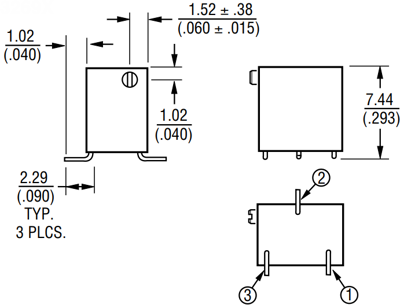

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 7.44 mm | |
| Length | 6.35 mm | |
| Power | 0.25 W | |
| Contact distance | RM 5.08 | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 150 °C | |
| Connection | gull-wing | |
| min. operating temperature | -65 °C | |
| Version | cermet trimmer potentiometer | |
| Assembly | SMD | |
| max. number of revolutions | 12 | |
| Width | 4.32 mm | |
| Seeting | lateral | |
| Tolerance | ±10 % | |
| Rotary range, electrical | 4320 ° | |
| ohmic resistance | 1 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CR |
| Original Packaging | Bar with 100 pieces |
| MSL | MSL 2 |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
