3269W-1-503GLF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 50 kΩ, 0.25 W, SMD, on top, 3269W-1-503GLF
Order No.: 78E2644
EAN: 4099879911483
MPN:
3269W-1-503GLF
Unit Price (€ / pc.)
2.9869 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
SMD Cermet trimmer potentiometer, 3269W-1-503GLF, Bourns
SMD Cermet trimmer potentiometer, 50 kΩ, 0.25 W
Features
- Stable, infinite resolution cermet element
- Vertical and horizontal adjust styles
- Optional packaging on embossed tape
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 12 | |
| Track Taper | linear | |
| Assembly | SMD | |

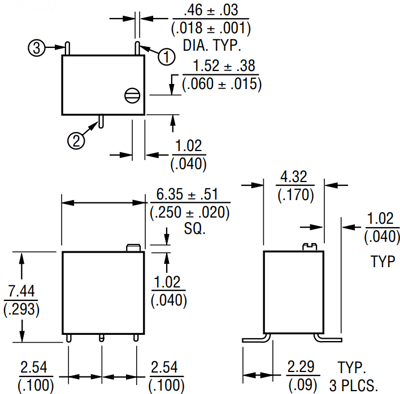

| Width | 4.32 mm | |
| Height | 7.44 mm | |
| Power | 0.25 W | |
| Length | 6.35 mm | |
| Contact distance | RM 2.54 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | gull-wing | |
| Tolerance | ±10 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 4320 ° | |
| ohmic resistance | 50 kΩ | |
| Seeting | on top |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
