3269W-1-100GLF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 10 Ω, 0.25 W, SMD, on top, 3269W-1-100GLF
Order No.: 78E2593
EAN: 4099879910974
MPN:
3269W-1-100GLF
Unit Price (€ / pc.)
2.9869 € *
Standard delivery time from the manufacturer is: 12 Weeks
SMD Cermet trimmer potentiometer, 3269W-1-100GLF, Bourns
SMD Cermet trimmer potentiometer, 10 Ω, 0.25 W
Features
- Stable, infinite resolution cermet element
- Vertical and horizontal adjust styles
- Optional packaging on embossed tape
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 12 | |
| Contact distance | RM 2.54 | |
| Connection | gull-wing | |
| Tolerance | ±10 % | |
| Seeting | on top | |
| Track Taper | linear | |
| ohmic resistance | 10 Ω | |
| Power | 0.25 W | |

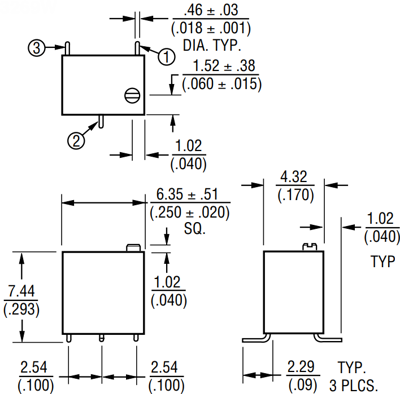

| Width | 4.32 mm | |
| Height | 7.44 mm | |
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Version | cermet trimmer potentiometer | |
| Rotary range, electrical | 4320 ° | |
| Length | 6.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | CR |
| Original Packaging | Bar with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
