3266W-1-253LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 12 turns, 25 kΩ, 0.25 W, THT, on top, 3266W-1-253LF

Order No.: 76E2272
EAN: 4099879892904
MPN:
3266W-1-253LF
Series: 3266W

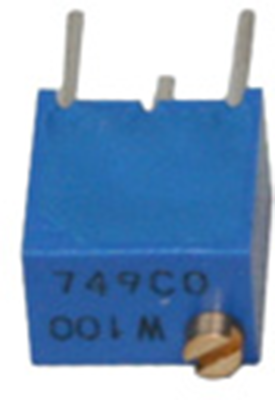

3266W-1-253LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

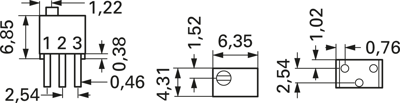

3266W-1-253LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
409.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
200 pcs.
2.0468 €

Cermet trimmer potentiometer, 3266W-1-253LF, Bourns

Cermet trimmer potentiometer, 25 kΩ, 0.25 W

Features

  • Multiturn / Cermet / Industrial / Sealed
  • Standoffs allow thorough PC board washing
  • Tape and reel packaging available
Technical specifications
Temperature coefficient ±100 ppm/K
max. number of revolutions 12
Track Taper linear
Assembly THT
Width 4.5 mm
Height 7.24 mm
Power 0.25 W
Length 6.71 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 4320 °
ohmic resistance 25 kΩ
Seeting on top
Logistics
Country of origin CR
Customs tariff number 85334010
MSL MSL 2
Original Packaging Bar with 50 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
