3266W-1-204LF | Bourns Electronics GmbH

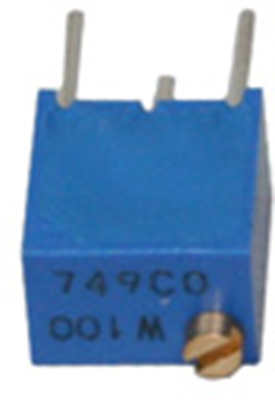

Cermet trimmer potentiometer, 12 turns, 200 kΩ, 0.25 W, THT, on top, 3266W-1-204LF
Unit Price (€ / pc.)
4.1888 € *
Available: 68 pcs.
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1888 €
10 pcs.
2.9869 €
100 pcs.
2.5585 €
500 pcs.
2.2253 €
1000 pcs.
2.0111 €
*incl. VAT plus shipping costs
Subject to prior sale
Cermet trimmer potentiometer, 3266W-1-204LF, Bourns
Cermet trimmer potentiometer, 200 kΩ, 0.25 W
Features
- Multiturn / Cermet / Industrial / Sealed
- Standoffs allow thorough PC board washing
- Tape and reel packaging available

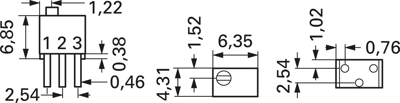

Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 200 kΩ | |
| max. operating temperature | 125 °C | |
| Seeting | on top | |
| Length | 6.71 mm | |
| min. operating temperature | -55 °C | |
| Height | 7.24 mm | |
| Assembly | THT | |
| Contact distance | RM 2.54 | |
| Width | 4.5 mm | |
| Track Taper | linear | |
| Rotary range, electrical | 4320 ° | |
| Power | 0.25 W | |
| Connection | solder pin | |
| Temperature coefficient | ±100 ppm/K | |
| Version | cermet trimmer potentiometer | |
| Tolerance | ±10 % | |
| max. number of revolutions | 12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 50 pieces |
| Country of origin | CR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
