3266P-1-203LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 20 kΩ, 0.25 W, THT, lateral, 3266P-1-203LF
Order No.: 76E2220
EAN: 4099879892737
MPN:
3266P-1-203LF
Unit Price (€ / pc.)
2.3681 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

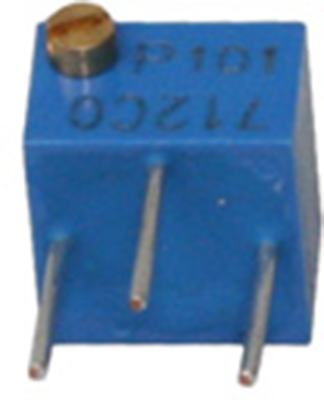

Cermet trimmer potentiometer, 3266P-1-203LF, Bourns
Cermet trimmer potentiometer, 20 kΩ, 0.25 W
Features
- Multiturn / Cermet / Industrial / Sealed
- Standoffs allow thorough PC board washing
- Tape and reel packaging available

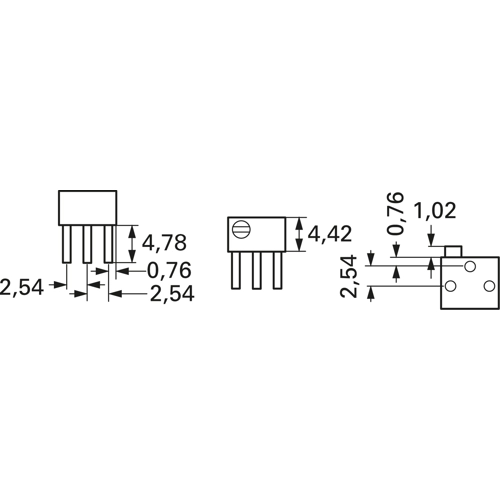

Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 12 | |
| Track Taper | linear | |
| Assembly | THT | |
| Width | 6.78 mm | |
| Height | 4.5 mm | |
| Power | 0.25 W | |
| Length | 6.71 mm | |
| Contact distance | RM 2.54 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | solder pin | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 4320 ° | |
| ohmic resistance | 20 kΩ | |
| Seeting | lateral |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
