3266P-1-104LF | Bourns Electronics GmbH

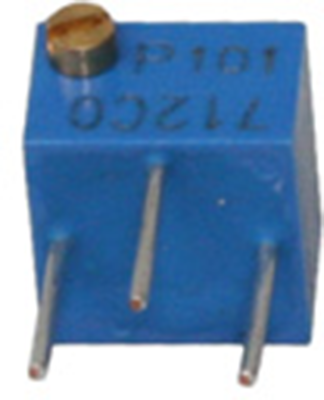

Cermet trimmer potentiometer, 12 turns, 100 kΩ, 0.25 W, THT, lateral, 3266P-1-104LF
Unit Price (€ / pc.)
3.6652 € *
Available: 161 pcs.
Total Price:
3.67 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6652 €
10 pcs.
2.8560 €
25 pcs.
2.2372 €
50 pcs.
1.9397 €
100 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale
Cermet trimmer potentiometer, 3266P-1-104LF, Bourns
Cermet trimmer potentiometer, 100 kΩ, 0.25 W
Features
- Multiturn / Cermet / Industrial / Sealed
- Standoffs allow thorough PC board washing
- Tape and reel packaging available
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |

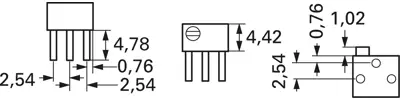

| Height | 4.5 mm | |
| Tolerance | ±10 % | |
| Width | 6.78 mm | |
| ohmic resistance | 100 kΩ | |
| Power | 0.25 W | |
| Track Taper | linear | |
| Length | 6.71 mm | |
| Temperature coefficient | ±100 ppm/K | |
| Connection | solder pin | |
| max. number of revolutions | 12 | |
| Rotary range, electrical | 4320 ° | |
| Seeting | lateral | |
| Contact distance | RM 2.54 | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 2 |
| Customs tariff number | 85334010 |
| Country of origin | CR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
