3262W-1-205 | Bourns Electronics GmbH

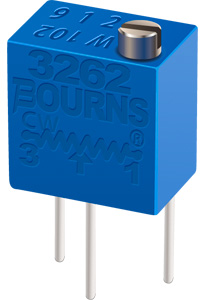

Cermet trimmer potentiometer, 12 turns, 2 MΩ, 0.25 W, THT, on top, 3262W-1-205
Order No.: 78E2303
EAN: 4099879908087
MPN:
3262W-1-205
Unit Price (€ / pc.)
12.9234 € *
Standard delivery time from the manufacturer is: 12 Weeks
Trimmer potentiometer, 3262W-1-205, Bourns
Trimmer potentiometer, 2 MΩ, 0.25 W
Features
- Multiturn / Cermet / Industrial / Sealed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 6.35 mm | |
| Length | 6.35 mm | |
| Power | 0.25 W | |
| Contact distance | RM 5.08/2.54 | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 150 °C | |
| Connection | solder pin | |
| min. operating temperature | -65 °C | |
| Track Taper | linear | |
| Version | cermet trimmer potentiometer | |
| Assembly | THT | |
| max. number of revolutions | 12 | |
| Width | 4.32 mm | |
| Seeting | on top | |
| Tolerance | ±10 % | |
| Rotary range, electrical | 4320 ° | |
| ohmic resistance | 2 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CR |
| Original Packaging | Bulk with 50 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | No |
