3252W-1-501LF | Bourns Electronics GmbH

Name: Cermet trimmer potentiometer, 25 turns, 500 Ω, 0.75 W, THT, on top, 3252W-1-501LF
Brand: Bourns Electronics GmbH
SKU: 78E2157
Availability: InStock

Cermet trimmer potentiometer, 25 turns, 500 Ω, 0.75 W, THT, on top, 3252W-1-501LF

Order No.: 78E2157

EAN: 4099879906922

MPN:

3252W-1-501LF

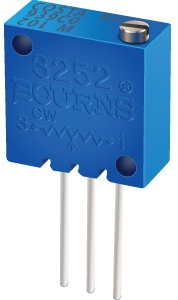

Image may differ

Key Specification:

Version cermet trimmer potentiometer

ohmic resistance 500 Ω

Tolerance ±10 %

Power 0.75 W

Assembly THT

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.0194 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

1,101.94 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Trimmer potentiometer, 3252W-1-501LF, Bourns

Trimmer potentiometer, 500 Ω, 0.75 W

Features

Multiturn / Cermet / Sealed

Technical specifications

Filter	Property	Value
	Temperature coefficient	±100 ppm/K
	max. number of revolutions	25
	Contact distance	RM 2.54
	Connection	solder pin
	Tolerance	±10 %
	Seeting	on top
	ohmic resistance	500 Ω
	Power	0.75 W
	Width	12.7 mm
	Height	5.59 mm
	Assembly	THT
	max. operating temperature	150 °C
	min. operating temperature	-65 °C
	Version	cermet trimmer potentiometer
	Rotary range, electrical	9000 °
	Length	12.7 mm
