3252W-1-253MLF | Bourns Electronics GmbH

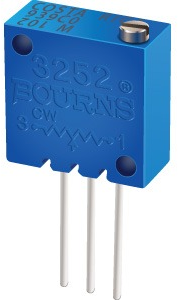

Cermet trimmer potentiometer, 25 turns, 25 kΩ, 0.75 W, THT, on top, 3252W-1-253MLF
Order No.: 78E2151
EAN: 4099879906885
MPN:
3252W-1-253MLF
Unit Price (€ / pc.)
19.8016 € *
Standard delivery time from the manufacturer is: 12 Weeks
Trimmer potentiometer, 3252W-1-253MLF, Bourns
Trimmer potentiometer, 25 kΩ, 0.75 W
Features
- Multiturn / Cermet / Sealed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 25 | |
| Assembly | THT | |
| Width | 12.7 mm | |
| Height | 5.59 mm | |
| Power | 0.75 W | |
| Length | 12.7 mm | |
| Contact distance | RM 2.54 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | solder pin | |
| Tolerance | ±10 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 9000 ° | |
| ohmic resistance | 25 kΩ | |
| Seeting | on top |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 25 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
