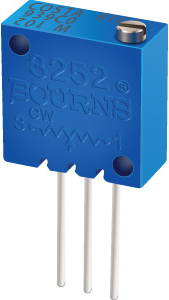

3252L-1-102MLF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 25 turns, 1 kΩ, 0.75 W, panel mounting, on top, 3252L-1-102MLF
Order No.: 78E2012
EAN: 4099879905956
MPN:
3252L-1-102MLF
Unit Price (€ / pc.)
32.3204 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Trimmer potentiometer, 3252L-1-102MLF, Bourns
Trimmer potentiometer, 1 kΩ, 0.75 W
Features
- Multiturn / Cermet / Sealed
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 25 | |
| Assembly | panel mounting | |
| Width | 4.75 mm | |
| Height | 12.7 mm | |
| Power | 0.75 W | |
| Length | 12.7 mm | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | J-hook | |
| Tolerance | ±10 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 9000 ° | |
| ohmic resistance | 1 kΩ | |
| Seeting | on top |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
