3224X-1-103E | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 10 kΩ, 0.25 W, SMD, on top, 3224X-1-103E
Unit Price (€ / pc.)
3.4391 € *
Available: 174 pcs.
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
3.0345 €
200 pcs.
2.6537 €
400 pcs.
2.5466 €
800 pcs.
2.4514 €
*incl. VAT plus shipping costs
Subject to prior sale
Trimmer potentiometer, 3224X-1-103E, Bourns
Trimmer potentiometer, 10 kΩ, 0.25 W
Features
- Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
- Sealed to withstand board wash processing
- Pick and place centering design, with flush adjustment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 0.25 W | |
| max. number of revolutions | 12 | |
| Seeting | on top | |
| Contact distance | RM 2.5 | |
| Connection | gull-wing | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 4320 ° | |
| Tolerance | ±10 % | |

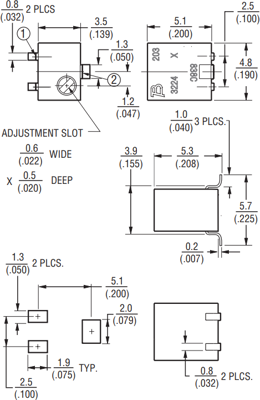

| Length | 4.8 mm | |
| Height | 5.3 mm | |
| Assembly | SMD | |
| Width | 3.5 mm | |
| min. operating temperature | -65 °C | |
| Track Taper | linear | |
| ohmic resistance | 10 kΩ | |
| Version | cermet trimmer potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Reel with 200 pieces |
| MSL | MSL 2 |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
