3224W-2-202E | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 2 kΩ, 0.25 W, SMD, on top, 3224W-2-202E
Order No.: 78E1919
EAN: 4099879905086
MPN:
3224W-2-202E
Unit Price (€ / pc.)
2.499 € *
Standard delivery time from the manufacturer is: 12 Weeks
SMD Cermet trimmer potentiometer, 3224W-2-202E, Bourns
SMD Cermet trimmer potentiometer, 2 kΩ, 0.25 W
Features
- Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
- Sealed to withstand board wash processing
- Pick and place centering design, with flush adjustment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 2 kΩ | |
| max. operating temperature | 150 °C | |
| Seeting | on top | |

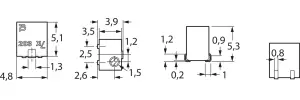

| Length | 4.8 mm | |
| min. operating temperature | -65 °C | |
| Height | 5.3 mm | |
| Assembly | SMD | |
| Contact distance | RM 2.5 | |
| Width | 3.5 mm | |
| Track Taper | linear | |
| Rotary range, electrical | 4320 ° | |
| Power | 0.25 W | |
| Connection | J-hook | |
| Temperature coefficient | ±100 ppm/K | |
| Version | cermet trimmer potentiometer | |
| Tolerance | ±10 % | |
| max. number of revolutions | 12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Original Packaging | Reel with 250 pieces |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
