3224J-1-473E | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 47 kΩ, 0.25 W, SMD, lateral, 3224J-1-473E
Order No.: 78E1883
EAN: 4099879904737
MPN:
3224J-1-473E
Unit Price (€ / pc.)
2.1539 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
SMD Cermet trimmer potentiometer, 3224J-1-473E, Bourns
SMD Cermet trimmer potentiometer, 47 kΩ, 0.25 W
Features
- Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
- Sealed to withstand board wash processing
- Pick and place centering design, with flush adjustment
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 12 | |
| Track Taper | linear | |
| Assembly | SMD | |

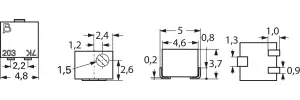

| Width | 4.6 mm | |
| Height | 3.71 mm | |
| Power | 0.25 W | |
| Length | 4.8 mm | |
| Contact distance | RM 4.8 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | J-hook | |
| Tolerance | ±10 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 4320 ° | |
| ohmic resistance | 47 kΩ | |
| Seeting | lateral |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
