3214X-2-202E | Bourns Electronics GmbH
Cermet trimmer potentiometer, 5 turns, 2 kΩ, 0.25 W, SMD, on top, 3214X-2-202E
Order No.: 78E1774
EAN: 4099879903655
MPN:
3214X-2-202E
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

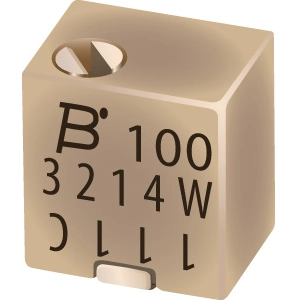

Trimmer potentiometer, 3214X-2-202E, Bourns
Trimmer potentiometer, 2 kΩ, 0.25 W
Features
- Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
- Sealed to withstand board wash processing
- Pick and place centering design, with flush adjustment

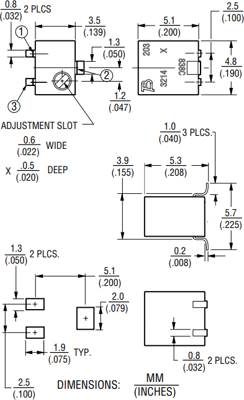

Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 5 | |
| Assembly | SMD | |
| Width | 3.5 mm | |
| Height | 5.1 mm | |
| Power | 0.25 W | |
| Length | 4.8 mm | |
| Contact distance | RM 2.5 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | gull-wing | |
| Tolerance | ±10 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 1800 ° | |
| ohmic resistance | 2 kΩ | |
| Seeting | on top |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Reel with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
