3214W-1-503G | Bourns Electronics GmbH

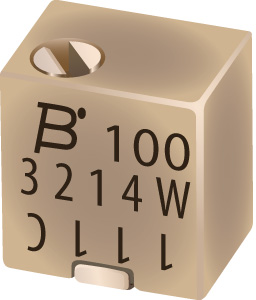

Cermet trimmer potentiometer, 5 turns, 50 kΩ, 0.25 W, SMD, on top, 3214W-1-503G
Order No.: 78E1735
EAN: 4099879903266
MPN:
3214W-1-503G
Unit Price (€ / pc.)
1.8564 € *
Standard delivery time from the manufacturer is: 12 Weeks
Trimmer potentiometer, 3214W-1-503G, Bourns
Trimmer potentiometer, 50 kΩ, 0.25 W
Features
- Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
- Sealed to withstand board wash processing
- Pick and place centering design, with flush adjustment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 5 | |
| Contact distance | RM 2.5 | |
| Connection | J-hook | |
| Tolerance | ±10 % | |
| Seeting | on top | |
| Track Taper | linear | |
| ohmic resistance | 50 kΩ | |
| Power | 0.25 W | |

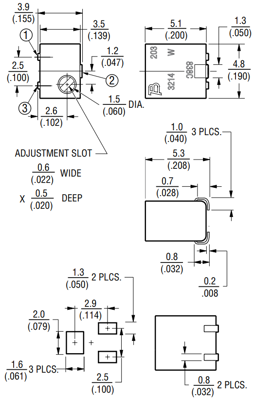

| Width | 3.9 mm | |
| Height | 5.1 mm | |
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Version | cermet trimmer potentiometer | |
| Rotary range, electrical | 1800 ° | |
| Length | 4.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | MX |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
